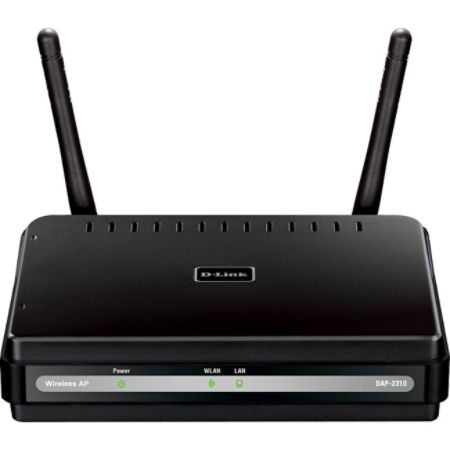

D-Link AirPremier DAP-2310 IEEE 802.11n 300 Mbit/s Wireless Access Point - ISM Band Item # 286598

 |
D-Link AirPremier DAP-2310 IEEE 802.11n 300 Mbit/s Wireless Access Point - ISM Band
$ 84 .99 / each (*) $84.99
Was: $100.99 / each  (You Save: $16.00)
After Instant Savings
Prices effective through 05/28/2016.
Add a Protection Plan (optional)  Learn More
In Stock
Free delivery
Estimated delivery 7-10 business days

    Description

    The DAP-2310 is a single band Wireless N access point ideal for any small business or school requiring a fast reliable wireless network.

    Back To Top

    Product Details

    Item # 286598
    Manufacturer # LL2322
    Wireless Transmission Speed 300 Mbit/s
    power source AC adapter
    Wireless Security 64/128-bit WEP; WPA-Personal; WPA2-Personal; WPA-Enterprise; WPA2-Enterprise; IEEE 802.1x; MAC Address Filtering; Rogue AP Detection; SSH; RADIUS; AES; TKIP; IEEE 802.11i
    HDMI No
    Ethernet Port Yes
    Gigabit Ethernet Port Yes
    height 1.1 in
    System Requirements Operating Systems:Windows; Mac OS X; Linux; Web Browsers:Microsoft Internet Explorer 6.0 and Higher; Mozilla Firefox 3.0 and Higher; Google Chrome 2.0 and Higher; Apple Safari 3.0 and Higher
    Number of Network (RJ-45) Ports 1
    Features Quality of Service (QoS)
    Ruggedized Design Indoor
    antenna type Dipole Antenna
    Serial Port No
    width 5.8 in
    Product Line AirPremier
    10Gigabit Ethernet Port No
    depth 4.4 in
    Product Name AirPremier DAP-2310 Wireless Access Point
    Antenna Gain 2 dBi
    manufacturer D-Link Systems, Inc
    Management Web Based Management; Telnet; SNMP v1/v2c/v3; AP Manager II; D-View 5.1 and 6.0; VLAN; DHCP
    VGA No
    Audio Line Out No
    weight 8.40 oz
    Powerline No
    Wireless LAN Standard IEEE 802.11n
    brand name D-link
    USB No
    UNII Band No
    Input Voltage 5 V DC
    Network (RJ-11) No
    Management Port No
    ISM Maximum Frequency 2.48 GHz
    ISM Band Yes
    form factor Desktop
    ISM Minimum Frequency 2.40 GHz
    model name DAP-2310
    Fast Ethernet Port Yes
    Show More ▾
    Back To Top

      Customer Reviews

      Rated 4 out of 5�by 1 reviewer.
      Rated 4 out of 5�by D-Link AirPremier DAP-2310 Works great. I had to contact D-Link tech suppport to get this setup and installed. Don't waste time trying to set it up without tech support's help. December 28, 2013
      • 2016-04-18 T07:01:40.135-05:00
      • bvseo_lps, prod_bvrr, vn_prr_5.6
      • cp-1, bvpage1
      • co_hasreviews, tv_1, tr_1
      • loc_en_US, sid_286598, prod, sort_default
      1-1 of 1
      Back To Top

      From the Manufacturer|Powered by Webcollage

      Thank You Is the information in this section helpful? Yes / No

      Description

      • Description

        The DAP-2310 AirPremier N300 2.4GHz High Power Access Point is a Single Band 802.11n access point ideal for any small or medium business that requires reliable wireless performance coupled with robust security in a cost effective and easy to deploy package. With transfer rates of up to 300 Mbps in the 2.4 GHz N frequency range, users are able to connect with legacy 802.11g adapters in addition to the latest 802.11n adapters to enjoy faster downloads and instant communication.

      • Versatile Access Point

        The DAP-2310 allows network administrators to deploy a highly manageable and extremely robust 802.11n wireless network. The included antennas are detachable and provide optimal wireless coverage in the 2.4 GHz (802.11g and 802.11n) band using a high power radio design to reduce dead spots and increase capacity. For advanced installations, this high-speed access point has integrated 802.3af Power over Ethernet (PoE), making installation easy in areas where power outlets are not readily available.

      • Enhanced Performance

        The DAP-2310 delivers fast reliable wireless performance with maximum wireless signal rates of up to 300 Mbps this coupled with support for Wi-Fi Multimedia (WMM™) Quality of Service features, makes it an ideal access point for audio, video, and voice applications. Additionally, the DAP-2310 supports load balancing features to ensure maximum performance by limiting the maximum number of users per Access Point.

      • Security

        To help maintain a secure wireless network, the DAP-2310 provides the latest in wireless security technologies including:
          • Personal and Enterprise WPA and WPA2 (802.11i) Support
          • RADIUS Authentication, MAC Address Filtering, Rogue AP Detection
          • Wireless LAN segmentation with support for up to eight VLANs
          • Disable SSID Broadcast and Wireless Broadcast Scheduling
          • Wireless client isolation limiting direct client-to-client communication

      • Multiple Operation Modes

        To maximize return on investment, the DAP-2310 can be configured to optimize network performance based on any one of its multiple operation modes:
          • Access Point (AP)
          • WDS with AP
          • WDS/Bridge (no AP Broadcast)
          • Wireless Client
          • AP Repeater
        With WDS support, network administrators can set up multiple DAP-2310 access points throughout a facility and configure them to bridge with one another while providing network access to individual clients. Advanced features such as Load Balancing, optimizes high network traffic volume with redundancy for fail-safe wireless connectivity.

      • Network Management

        Network administrators have multiple options for managing the DAP-2310 Access Point, including Web (HTTP), Secure Sockets Layer (SSL), which provides a secure connection to the Internet, Secure Shell (SSH), which provides a secure channel between local and remote computers, and Telnet.

        For advanced network management, administrators can use the D-Link Central Wi-Fi Manager controller software to configure and manage multiple access points from a single location. Scalable and flexible, Central WiFiManager is accessible anytime, anywhere, though the Internet by using a web browser. In addition to a streamlined management process, Central Wi-Fi Manager software provides enterprise-level features, including bandwidth optimization, captive portal, and RF optimization. Also available is AP Array, allowing the management of a set of network devices as a single group for easy configuration and deployment. The DAP-2310 also has a wireless scheduler feature for power saving and added security.

        With up to 300 Mbps 2.4 GHz N band functionality, extensive management options, versatile operation modes, and Enterprise level security, the D-Link DAP-2310 AirPremier N 2.4GHz High Power Access Point provides SMB and SME environments with a powerful business-class wireless solution.

      • Limited Lifetime Warranty

        D-Link offers a Limited Lifetime Warranty on the DAP-2310 to further its commitment to product quality and long-term customer confidence.

      Features

      Security Features:
      • WPA2™ - Enterprise/Personal
      • WPA™ - Enterprise/Personal
      • WPA2™ - PSK/AES over WDS
      • 64/128 -bit WEP Encryption
      • MAC Address Filtering
      • 802.1X

      Easy Management:
      • Web Browser (HTTP/HTTPS)
      • Telnet
      • SNMP v1, v2c, and v3
      • Central Wi-Fi Manager
      • SSH
      • AP Array

      Images

      {"images":[{"assetWrapper":"image-gallery","description":"Front View of DAP-2310 Wireless Access Point","runtimeSrc":{"height":928,"width":1003,"src":"/_cp/products/1328216270183/tab-27eaa091-67d8-4d4a-8078-a83f265ace1c/11fe68cb-7e23-4c91-96ae-ed0e27d47cfd.jpg.web.jpg"},"caption":"DAP-2310 Front View","isAdaCompliant":true,"src":{"height":928,"width":1003,"src":"/_cp/products/1328216270183/tab-27eaa091-67d8-4d4a-8078-a83f265ace1c/11fe68cb-7e23-4c91-96ae-ed0e27d47cfd.jpg"},"sources":[{"height":888,"width":960,"src":"/_cp/products/1328216270183/tab-27eaa091-67d8-4d4a-8078-a83f265ace1c/11fe68cb-7e23-4c91-96ae-ed0e27d47cfd.jpg.w960.jpg"},{"height":444,"width":480,"src":"/_cp/products/1328216270183/tab-27eaa091-67d8-4d4a-8078-a83f265ace1c/11fe68cb-7e23-4c91-96ae-ed0e27d47cfd.jpg.w480.jpg"},{"height":222,"width":240,"src":"/_cp/products/1328216270183/tab-27eaa091-67d8-4d4a-8078-a83f265ace1c/11fe68cb-7e23-4c91-96ae-ed0e27d47cfd.jpg.w240.jpg"}]},{"assetWrapper":"image-gallery","description":"Side View of DAP-2310 Wireless Access Point","runtimeSrc":{"height":1395,"width":1681,"src":"/_cp/products/1328216270183/tab-27eaa091-67d8-4d4a-8078-a83f265ace1c/05220b70-fb5f-42c3-977b-692bc92b383b.jpg.web.jpg"},"caption":"DAP-2310 Side View","isAdaCompliant":true,"src":{"height":1395,"width":1681,"src":"/_cp/products/1328216270183/tab-27eaa091-67d8-4d4a-8078-a83f265ace1c/05220b70-fb5f-42c3-977b-692bc92b383b.jpg"},"sources":[{"height":797,"width":960,"src":"/_cp/products/1328216270183/tab-27eaa091-67d8-4d4a-8078-a83f265ace1c/05220b70-fb5f-42c3-977b-692bc92b383b.jpg.w960.jpg"},{"height":398,"width":480,"src":"/_cp/products/1328216270183/tab-27eaa091-67d8-4d4a-8078-a83f265ace1c/05220b70-fb5f-42c3-977b-692bc92b383b.jpg.w480.jpg"},{"height":199,"width":240,"src":"/_cp/products/1328216270183/tab-27eaa091-67d8-4d4a-8078-a83f265ace1c/05220b70-fb5f-42c3-977b-692bc92b383b.jpg.w240.jpg"}]},{"assetWrapper":"image-gallery","description":"Back View of DAP-2310 Wireless Access Point","runtimeSrc":{"height":716,"width":1003,"src":"/_cp/products/1328216270183/tab-27eaa091-67d8-4d4a-8078-a83f265ace1c/8f1e4832-a8bf-485e-8865-5c7b5e5493af.jpg.web.jpg"},"caption":"DAP-2310 Back View","isAdaCompliant":true,"src":{"height":716,"width":1003,"src":"/_cp/products/1328216270183/tab-27eaa091-67d8-4d4a-8078-a83f265ace1c/8f1e4832-a8bf-485e-8865-5c7b5e5493af.jpg"},"sources":[{"height":685,"width":960,"src":"/_cp/products/1328216270183/tab-27eaa091-67d8-4d4a-8078-a83f265ace1c/8f1e4832-a8bf-485e-8865-5c7b5e5493af.jpg.w960.jpg"},{"height":343,"width":480,"src":"/_cp/products/1328216270183/tab-27eaa091-67d8-4d4a-8078-a83f265ace1c/8f1e4832-a8bf-485e-8865-5c7b5e5493af.jpg.w480.jpg"},{"height":171,"width":240,"src":"/_cp/products/1328216270183/tab-27eaa091-67d8-4d4a-8078-a83f265ace1c/8f1e4832-a8bf-485e-8865-5c7b5e5493af.jpg.w240.jpg"}]}]}

      Specifications

      Technical Specifications

      Standards

      Standards
      • IEEE 802.11n
      • IEEE 802.11g
      • IEEE 802.3ab
      • IEEE 802.3af
      • IEEE 802.3u
      • IEEE 802.3

      Network Connectivity
      • 10/100/1000 Gigabit

      Network Management/Service
      • Telnet - Secure (SSH) Telnet
      • Web Browser Interface
      • HTTP - Secure HTTP (HTTPS)
      • SNMP Support
      • Central Wi-Fi Manager
      • AP Array

      Security
      • WPA™ - Personal
      • WPA2™ - Enterprise
      • WPA2™ - Personal
      • WPA2™ - Enterprise
      • 64/128-bit WEP
      • SSID Broadcast Disable
      • MAC Address Access Control
      • Rogue AP Detection

      VLAN/SSID Support
      • 802.1q/Multiple SSID support up to 8 VLANs

      Quality of Service (QoS)
      • 4 Priority Queues
      • WMM Wireless Priority

      Wireless Frequency Range
      • 2.4 GHz to 2.4835 GHz

      Operating Modes
      • Access Point (AP)
      • WDS with AP
      • WDS/Bridge (No AP Broadcast)
      • Wireless Client
      • AP Repeater

      Dipole Antenna Gain
      • 2 dBi @ 2.4 GHz

      Maximum Transmit Output Power
      • FCC : 26 dBm

      LEDs
      • Power
      • LAN
      • WLAN

      General Specifications

      Max. Power Consumption
      • 7.9 watts

      Operating Voltage
      • 12 VDC/1A or 802.3af PoE

      Operating Temperature
      • 32 to 104 °F (0 to 40 °C)

      Storage Temperature
      • -4° to 149° F (-20° to 65° C)

      Operating Humidity
      • 10% to 90% non-condensing

      Storage Humidity
      • 5% to 95% non-condensing

      Weight
      • 0.525lbs (227 grams)

      Certifications
      • FCC (Class B)
      • CE
      • WiFi®

      Dimensions
      • Length: 4.4” (111mm)
      • Width: 5.8” (148mm)
      • Height: 1.1” (28mm)

      Warranty

      Warranty Limited Lifetime

      Ordering Information

      DAP-2310      DAP-2310 AirPremier® N300 2.4GHz High Power Access Point
